WPS500X Pressure Transducer Kit

Although you can buy a WPS500X and accessories separately you can save money by purchasing the WPS500X Pressure Transducer Kit.

Although you can buy a WPS500X and accessories separately you can save money by purchasing the WPS500X Pressure Transducer Kit. The kit includes the WPS500X Automotive Pressure Transducer together with a large selection of hoses and adapters – everything you’re likely to need and at a reduced cost compared to buying everything separately.

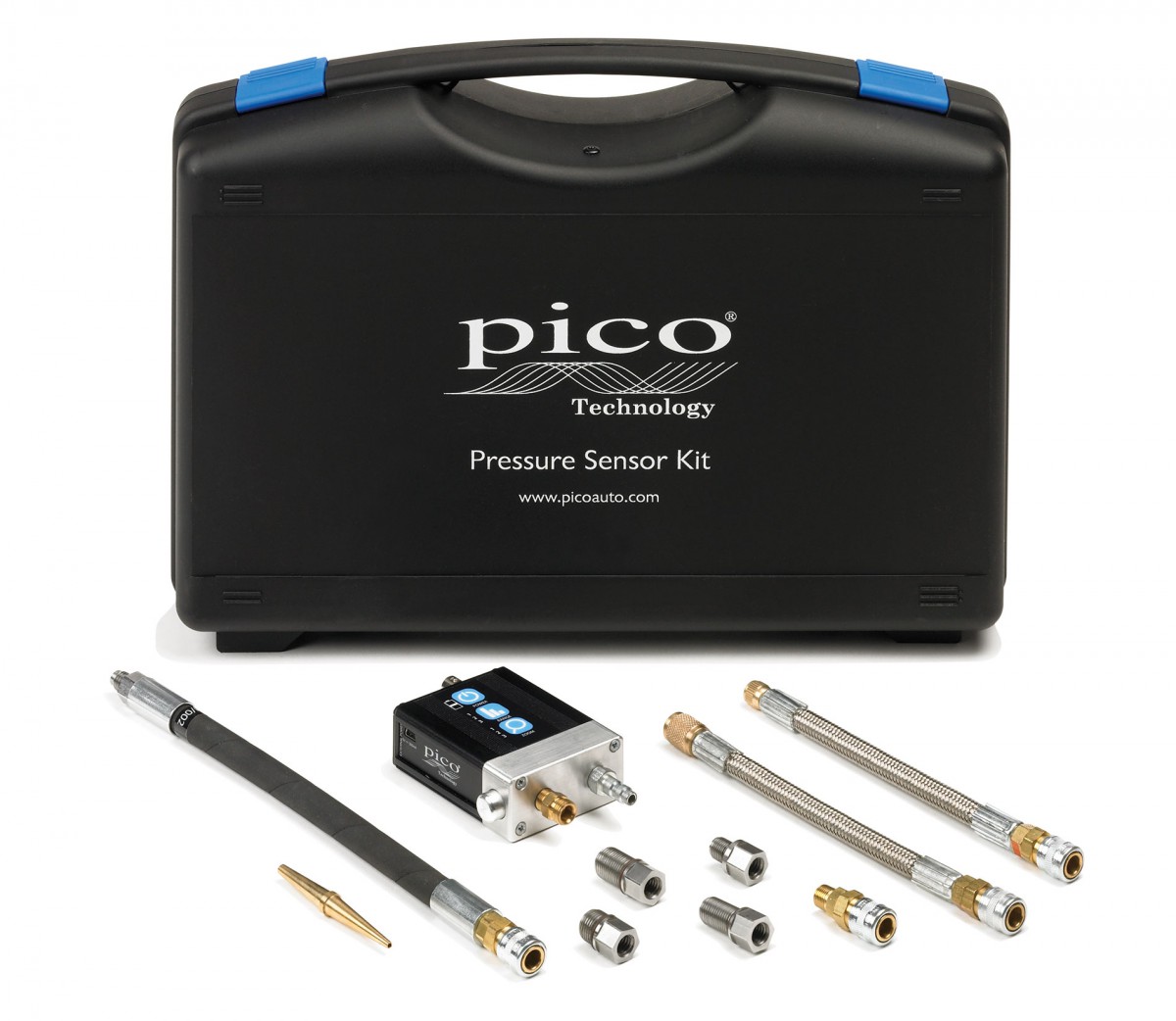

What you get:

  • WPS500X pressure transducer
  • Carry case
  • USB cable
  • BNC to BNC cable
  • TA083: Fuel hose with large Schrader valve
  • TA117: Fuel hose with small Schrader valve
  • TA085: Vacuum hose
  • TA086: Bleed hose
  • TA087: Exhaust adapter
  • TA142: spare Foster series 2 quick coupler
  • TA213: Adaptor M10 short reach
  • TA216: Adaptor M12 deep reach
  • TA217: Adaptor M14 short reach
  • TA218: Adaptor M14 Deep reach
  • TA212: Standard compression hose for WPS
  • TA129: Universal vacuum adaptor



Pressure ranges

Three pressure ranges = performance and versatility

The three pressure ranges of the WPS500X allow for accurate measurement and analysis of many automotive pressures including cylinder compression, fuel pressure, intake manifold vacuum and even pulses from the exhaust.

Range 1

The first range gives you high resolution and accuracy for high-pressure tests such as cranking and running cylinder compression or fuel pressure testing. Not only is this test a great way for you to find compression issues, but it is also an excellent way for you to identify cam timing issues such as jumped timing belts and stretched timing chains – this is especially useful on multi-cam engines that may not have a cam sensor on each camshaft.

Range 2

The second range measures from –15 to 50 psi(approximately –1 to 3.45 bar). This range is ideal for vacuum tests and fuel system tests. When testing these systems you will find the zoom function is especially useful as it makes it easy to analyze the valves operating with the vacuum waveform, or the injectors through the fuel waveform.

Range 3

With the third range you can measure –5 to 5 psi (approximately –0.34 to 0.34 bar). This setting is sensitive enough to allow you to analyze small pressures or pulses such as pulses from the exhaust.

Range Pressure range Accuracy Response time Output scaling
1 –15 to 500 psi
–1 to 34.47 bar
1% of scale 100 µs 10 mV/1 psi
(500 psi = 5 V)
2 –15 to 50 psi
–1 to 3.45 bar
1% of scale 100 µs 100 mV/1 psi
(50 psi = 5 V)
3 –5 to 5 psi
–0.34 to 0.34 bar
5% of scale filtered 1 V/1 psi
(5 psi = 5 V)

Typical Uses

The pressure transducer has become the essential diagnostic tool to assist with a multitude of pressure related tasks from -15 psi up to 500 psi, so replacing the majority of analogue gauges used today. With the ability to measure pressure against time we can now witness rapid events taking place that were never previously visible. Incorporated into the pressure transducer kit you will find multiple adapters and hoses to assist with a selection of the tests listed below taking diagnostics to a whole new level.

  • In cylinder pressure tests
  • 4 stroke cycle visibility
  • Exhaust gas pulsations
  • Intake manifold pressure fluctuations
  • Crankcase pressure measurements
  • Diesel injector back leakage tests
  • Fuel pressure tests up to 500 psi
