Current Clamps

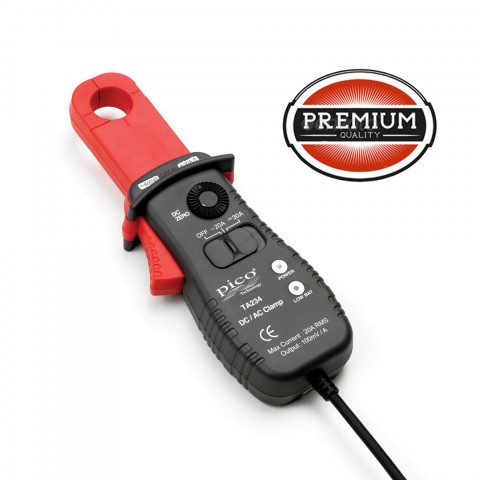

30 A (low amps) current clamp

The TA234 probe is a 30 A current clamp. The extended measuring jaws allow measurement in a confined space. When measuring DC, a simple thumbwheel on the probe allows zero adjustment.

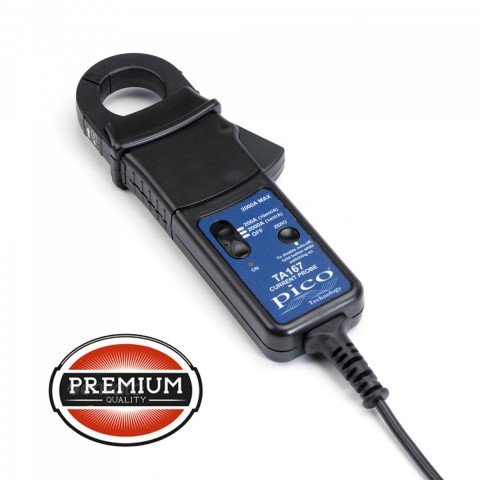

200 A / 2000 A (high amps) DC current clamp

The 200 A / 2000 A current clamp allows you to measure up to 2000 amps without cutting, or disconnecting or stripping wires. Simply clamp the jaws around the cable to be tested and plug the clamp into your PicoScope.

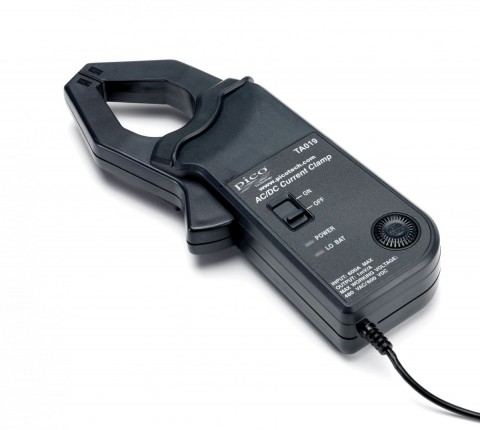

600 A DC (high amps) current clamp

The TA019 current clamp is ideal for use with a PicoScope automotive oscilloscope to display starter current waveforms, charging currents and for performing quick compression tests.

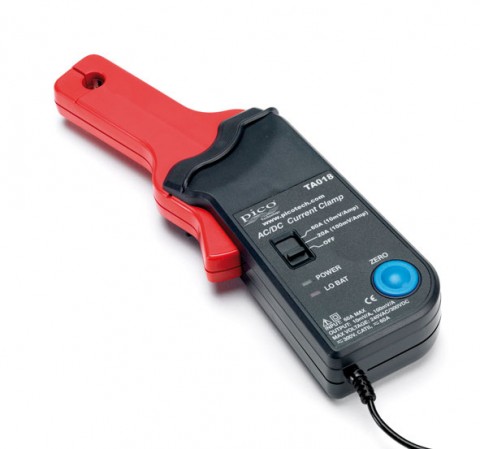

20 A / 60 A DC (low amps) current clamp

The TA018 current clamp is ideal for use with PicoScope automotive oscilloscopes for measuring currents between 10 mA and 60 A. This enables the PicoScope to display current waveforms for fuel injectors and fuel pumps.
